AIRBORNE LASER SCANNING
RIEGL VUX-1LR22

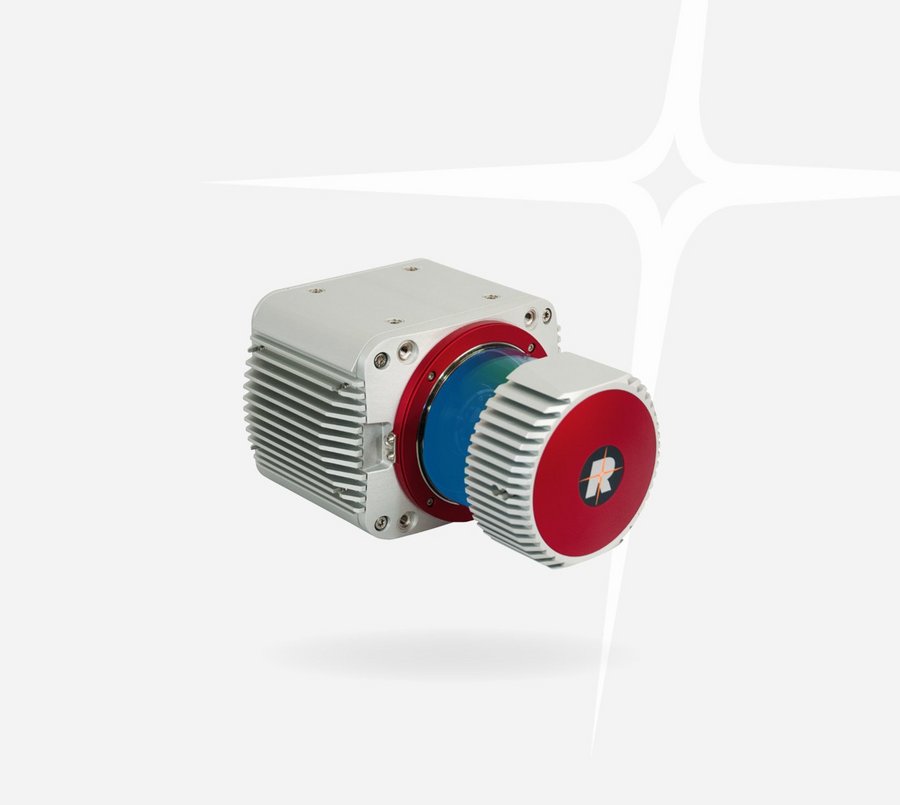

The RIEGL VUX-1LR²² is a very lightweight and compact laser scanner, meeting the challenges of airborne laser scanning by helicopter, gyrocopter, and other small aircraft both in measurement performance as well as in system integration. With regard to the specific constraints and flight characteristics, the RIEGL VUX-1LR²² is designed to be mounted in any orientation and even under limited weight and space conditions. Modest in power consumption, the instrument requires only a single power supply. The entire data set of an acquisition campaign is stored onto an internal 1 TByte SSD and/or provided as real-time line scan data via the integrated LAN-TCP/IP interface.
Lightweight Airborne Laser Scanner with Online Waveform Processing
The RIEGL VUX-1LR²² provides highspeed data acquisition using a narrow infrared laser beam and a fast line scanning mechanism. High-accuracy laser ranging is based on RIEGL's unique echo digitization and online waveform processing, which enables achieving superior measurement results even under adverse atmospheric conditions, and the evaluation of multiple target echoes. The scanning mechanism is based on an extremely fast rotating mirror, which provides fully linear, unidirectional and parallel scan lines, resulting in excellent regular point pattern.
Main Features
- 15 mm survey-grade accuracy
- scan speed up to 200 scans / second
- measurement rate up to 1,500,000 meas./sec (@ 1500 kHz PRR & 360° FOV)
- operating flight altitude more than 3,440 ft
- field of view up to 360° for practically unrestricted data acquisition
- regular point pattern, perfectly parallel scan lines
- multiple target capability - up to 15 targets echoes
- compact (227x180x125 mm), lightweight (3.5 kg), and rugged
- easily mountable to manned helicopters, gyrocopters, and other small manned aircrafts
- cutting edge RIEGL technology providing
- echo signal digitization
- online waveform processing
- multiple-time-around processing
- mechanical and electrical interface for IMU mounting
- electrical interfaces for GPS data string and Sync Pulse (1PPS)
- LAN-TCP/IP interface
- internal data storage on Solid State Disc SSD, 1 TByte
Main Applications
- Corridor Mapping: Power Line, Railway Track, and Pipeline Inspection
- Topography in Open-Cast Mining
- Terrain and Canyon Mapping
- Surveying of Urban Environments
- Archeology and Cultural Heritage Documentation
- Agriculture & Forestry
- resources management
- Rapid Response in Small Scale Surveying (Collision Investigation, Risk Prevention)
Technical Data Overview
| Laser Pulse Repetition Rate PRR | 50 kHz | 200 kHz | 400 kHz | 600 kHz |
|---|---|---|---|---|
| Max. Measuring Range (p ≥ 20%) | 1000 m | 600 m | 435 m | 355 m |
| Max. Measuring Range (p ≥ 60%) | 1630 m | 1000 m | 730 m | 600 m |
| Max. Measuring Range (p ≥ 80%) | 1845 m | 1140 m | 830 m | 690 m |
| Max. Number of Targets per Pulse | 15 | 15 | 15 | 15 |
| Accuracy / Precision | 15 mm / 5 mm | 15 mm / 5 mm | 15 mm / 5 mm | 15 mm / 5 mm |
Software for RIEGL VUX-1LR22
We complement our high-performance hardware with innovative software packages to create powerful solutions for demanding applications. The RIEGL software packages are exclusively bundled with the appropriate RIEGL laser scanners and laser scanning systems. For this RIEGL product we provide:
These RIEGL software packages are complemented by special libraries (RiVLib, RDBLib) and plugins (RiMAP Plugin for ArcGIS).
Explore some selected pointcloud samples.
Download Area & Further Information
RIEGL VUX-1LR22
Case Studies
RIEGL VUX-1LR22
