MOBILE LASER SCANNING

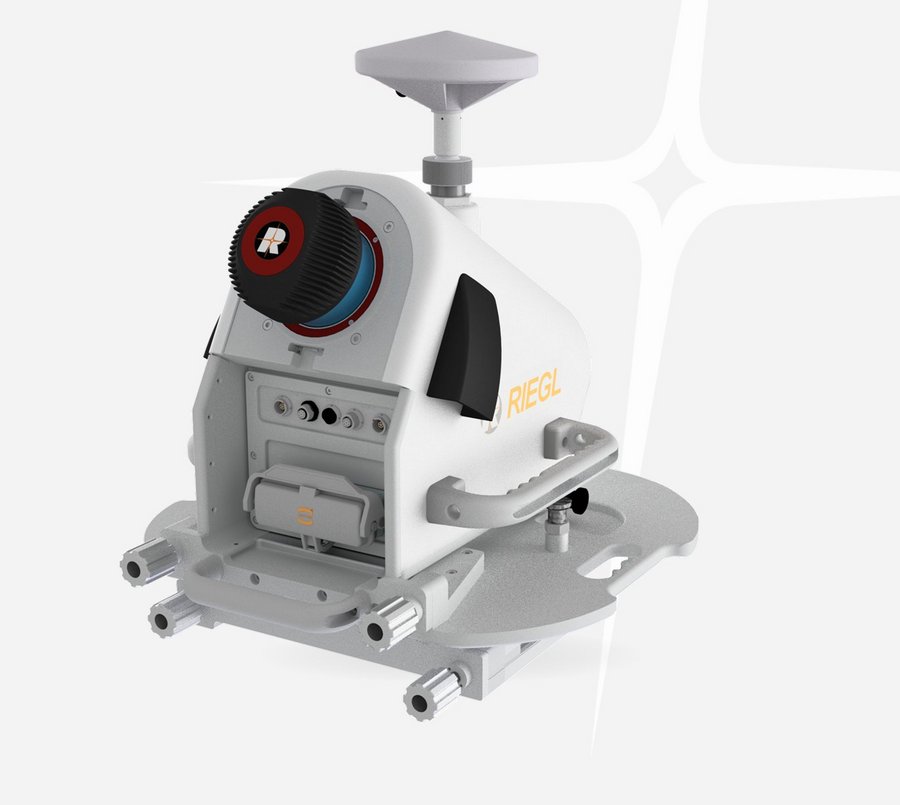

RIEGL VMQ-3HA
NEW
The RIEGL VMQ-3HA is a compact, economically priced High-Speed Single Scanner Mapping System, well suited for a variety of mobile mapping applications.
HIGH SPEED, HIGH PERFORMANCE
Single Scanner Mobile Mapping System

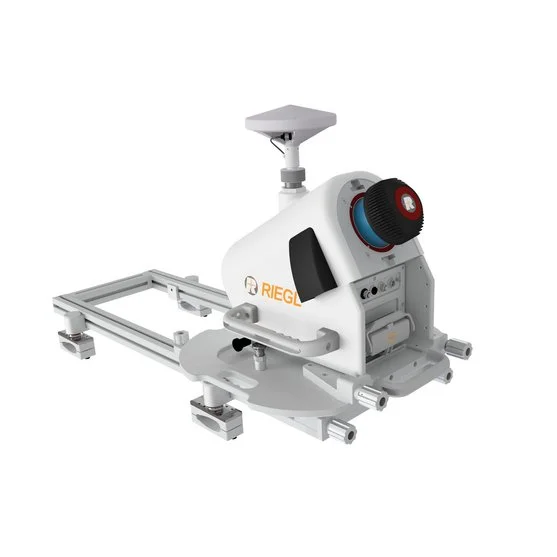

The system consists of a compact measuring head with a quick release system for convenient mounting. A swivel plate enables multiple mounting angles in order to optimize the field of view of the system. The optional integration of up to four cameras allows simultaneous acquisition of imagery to complement the captured LiDAR data.
The central part of the system is the fully integrated VUX-3HA LiDAR sensor providing 3 mio. measurements and up to 400 scan lines per second for an outstanding performance in mobile applications.
Main Features
- high laser pulse repetition rate of up to 3 MHz
- up to 400 scans per second
- max. measurement range 500 m
- Eye safe operation at Laser Class 1
- Field of view 360°
- Multiple target capability
- Optional integration of up to 4 cameras
Main Applications
- Transportation Infrastructure Mapping
- Road Surface Measurement
- HD Mapping for Autonomous Vehicles
- City Modeling
- Rapid Capture of Construction Sites and Bulk Material
- GIS Mapping and Asset Management
- As-Built Surveying
- Open Pit Mine Surveying
Technical Data Overview
| Effective Measurement Rate | 300 kHz | 1000 kHz | 1800 kHz | 3000 kHz |
|---|---|---|---|---|
| Max. Range, Target Reflectivity p ≥ 80% | 500 m | 280 m | 250 m | 200 m |
| Max. Range, Target Reflectivity p ≥ 10% | 180 m | 100 m | 90 m | 70 m |
| Minimum Range | 1 m | 1 m | 1 m | 1 m |
| Max. Number of Targets per Pulse | 31 | 15 | 8 | 8 |
| Accuracy / Precision | 3 mm / 2 mm | 3 mm / 2 mm | 3 mm / 2 mm | 3 mm / 2 mm |
Software for RIEGL VMQ-3HA
We complement our high-performance hardware with innovative software packages to create powerful solutions for demanding applications. The RIEGL software packages are exclusively bundled with the appropriate RIEGL laser scanners and laser scanning systems. For this RIEGL product we provide:
These RIEGL software packages are complemented by special libraries (RiVLib, RDBLib) and plugins (RiMAP Plugin for ArcGIS).
Explore some selected pointcloud samples.
