MOBILE LASER SCANNING

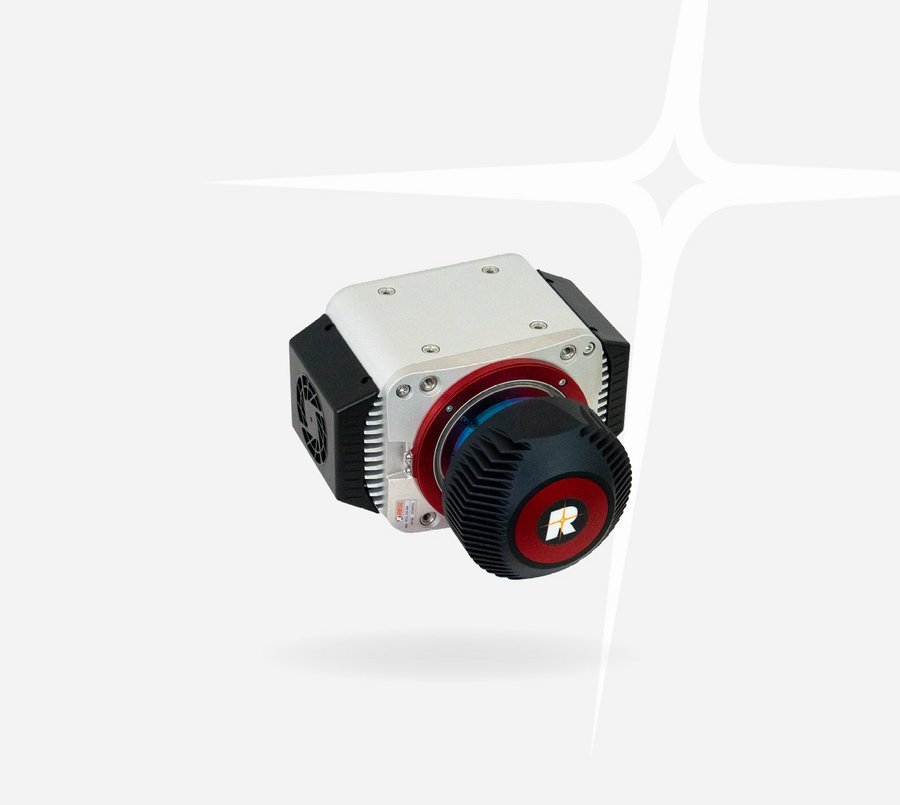

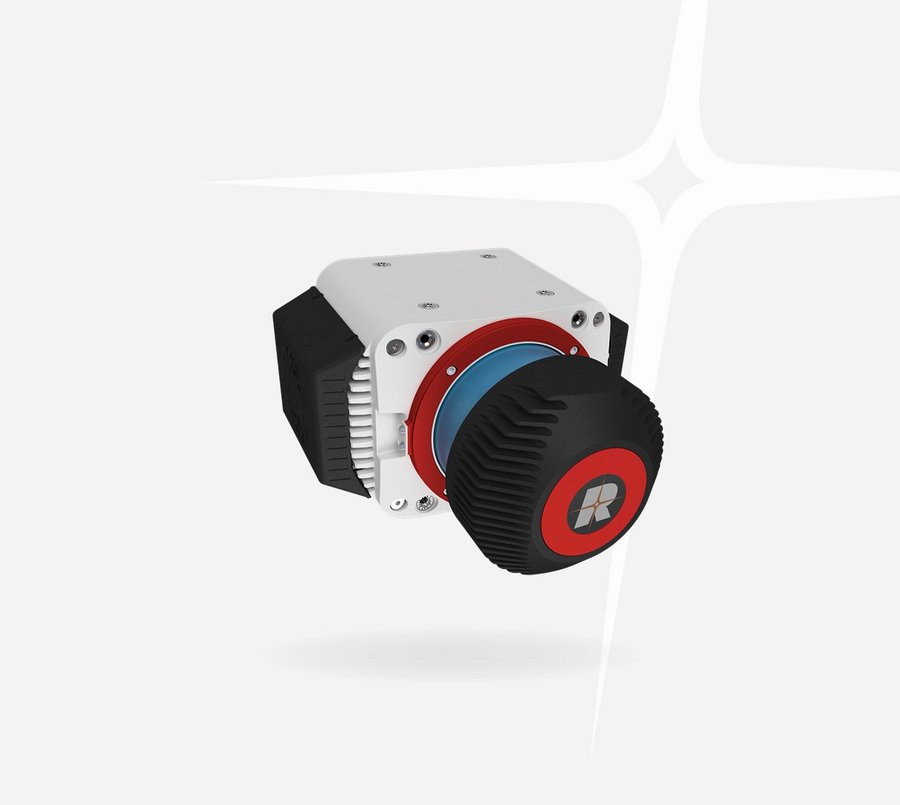

RIEGL VUX-3HA
NEW
The RIEGL VUX-3HA high-precision laser scanner offers a 360° coverage of extremely dense point cloud data. A pulse repetition rate of up to 3 MHz combined with an increased line speed of up to 400 scans/second enables the detection of minute details in closerange applications such as scanning road surfaces and the detection of even thin structures such as steel cable constructions, power lines, and vegetation details at longer distances. Even at higher platform speeds, the point density requirements of projects are easily met, increasing efficiency in a wide variety of mapping tasks.
FOR KINEMATIC LASER SCANNING
High-Performance LiDAR Sensor
High performance pulsed laser ranging, based on RIEGL‘s well-proven echo signal digitization technology with subsequent online waveform processing results in superior measurement capabilities even under adverse atmospheric conditions and in excellent multiple target echo discrimination. Scan data is provided with additional point attributes, e.g. range-independent reflectance and calibrated amplitude. While calibrated amplitude values visualize the objects scanned depending on the distance, range-independent reflectance values visualize them regardless of distance but depending on surface properties. Such information can be used for classification and further AI-based processing.
RIEGL’s software package RiPROCESS and the associated software tools and apps enable full utilization of the highly informative data available with each individual measurement point.
Main Features
- very high measurement rate up to 3,000,000 meas./sec
- very high scan speed up to 400 scans/sec
- survey-grade performance:
- 3 mm accuracy
- 2 mm precision
- 360° field of view for unrestricted data acquisition
- regular point pattern, perfectly parallel scan lines
- compact (212x209x125 mm), lightweight (3.2 kg), and rugged
- userfriendly mounting
- mechanical and electrical interface for external IMU sensor
- cutting edge RIEGL technology:
- echo signal digitization
- online waveform processing
- multiple-time-around processing
- multi-target capability
- calibrated amplitude
- range independent reflectance
- electrical interfaces for GNSS data string and sync pulse (1PPS)
- LAN-TCP/IP interface
- internal 2 TByte solid state drive (SSD) for data storage
Main Applications
ROAD:
- Transportation Infrastructure Mapping
- Road Surface Measurement
- HD Mapping for Autonomous Vehicles
- City Modeling
- GIS Mapping and Asset Management
- As-Built Surveying
RAIL:
- Rapid and Safe Data Capture with Minimal Disruption to Network Schedules
- Track and Infrastructure Monitoring
- Clash Detection Simulation and Clearance Analysis
Technical Data Overview
| Laser Pulse Repetition Rate PRR (peak) | 300 kHz | 1000 kHz | 1800 kHz | 3000 kHz |
|---|---|---|---|---|
| Max. Measuring Range (natural targets p ≥ 10%) | 180 m | 100 m | 90 m | 70 m |
| Max. Measuring Range (natural targets p ≥ 80%) | 500 m | 280 m | 250 m | 200 m |
| Minimum Range | 1 m | 1 m | 1 m | 1 m |
| Max. Number of Targets per Pulse | 31 | 15 | 8 | 5 |
| Accuracy / Precision | 3 mm / 2 mm | 3 mm / 2 mm | 3 mm / 2 mm | 3 mm / 2 mm |
Software for RIEGL VUX-3HA
We complement our high-performance hardware with innovative software packages to create powerful solutions for demanding applications. The RIEGL software packages are exclusively bundled with the appropriate RIEGL laser scanners and laser scanning systems. For this RIEGL product we provide:
These RIEGL software packages are complemented by special libraries (RiVLib, RDBLib) and plugins (RiMAP Plugin for ArcGIS).
Explore some selected pointcloud samples.
