RIEGL PH-VUX

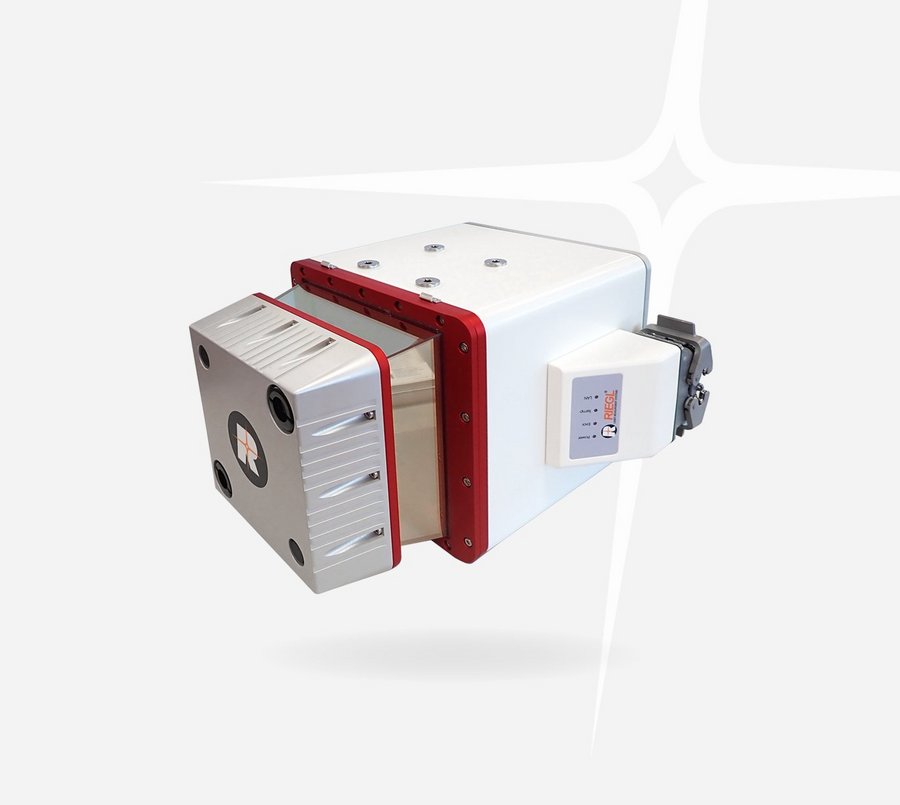

The Protective Housing PH-VUX is designed for the RIEGL VUX-1 Series laser scanners to be protected and used in harsh environments.
Protective Housing for RIEGL VUX-1 Series Laser Scanners
The laser scanner is enclosed within a hermetically-sealed protective housing and is operated in stabilized temperature conditions. This is achieved via long-life thermo-electric elements and forced-air cooling. Laser measurement is performed through specially coated window panes forming a square pyramid-shaped glass component.
Main Features
- Rugged and robust industrial protective housing for RIEGL VUX-1 Series Laser Scanners
- Hermetically-sealed, with thermo-electric elements and forced-air cooling
- Protection Class IP65
- Industrial standard connector for power supply and data interface
Main Applications
- Corridor Mapping
- Tunnel Surveying
- Automatic Stockpile Surveillance
- Automatisation of Stackers & Reclaimers
- Slope Angle Control
- Process Automation
- Autonomous Navigation
Technical Data Overview
| Power supply input voltage | 13 - 32 V DC, nominal 24 V DC |
|---|---|
| Main dimensions (L x W x H) | 381 mm x 291 mm 217 mm |
| Weight | approx. 8.5 kg |
| Mounting Interface | 8 x M6 threads, depth 12 mm |
| Protection class | IP65 |
| Temperature range (operation) | - 25°C up to +45°C |
